    installing windows 11 bypassing TPM check

    General
    2
    5
    381
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • R
      robertkwild last edited by

      hi all,

      got a good way installing windows 11 on esxi, bypassing tpm check, as thats where i got the error saying “your pc doesnt meet all the requirements”

      ive also on the vm disabled/unticked “secure boot” so i can still network boot my fog server

      heres the how to

      https://www.virten.net/2021/10/windows-11-on-vmware-esxi-this-pc-cant-run-windows-11/

      basically, when you come to the “enter your key screen” press shift+f10

      REG ADD HKLM\SYSTEM\Setup\LabConfig /v BypassTPMCheck /t REG_DWORD /d 1

      my end goal is to sysprep it and capture it to fog and then see if i can deploy it to new vm!

      thanks,
      rob

      R 1 Reply Last reply Reply Quote 1
      • R
        robertkwild @george1421 last edited by

        @george1421 the good thing is, you only need to do the reg hack and app removal on the GI, once you sysprep the GI and capture it, when you deploy it, you have to do nothing and you can deploy to multiple laptops, vms etc

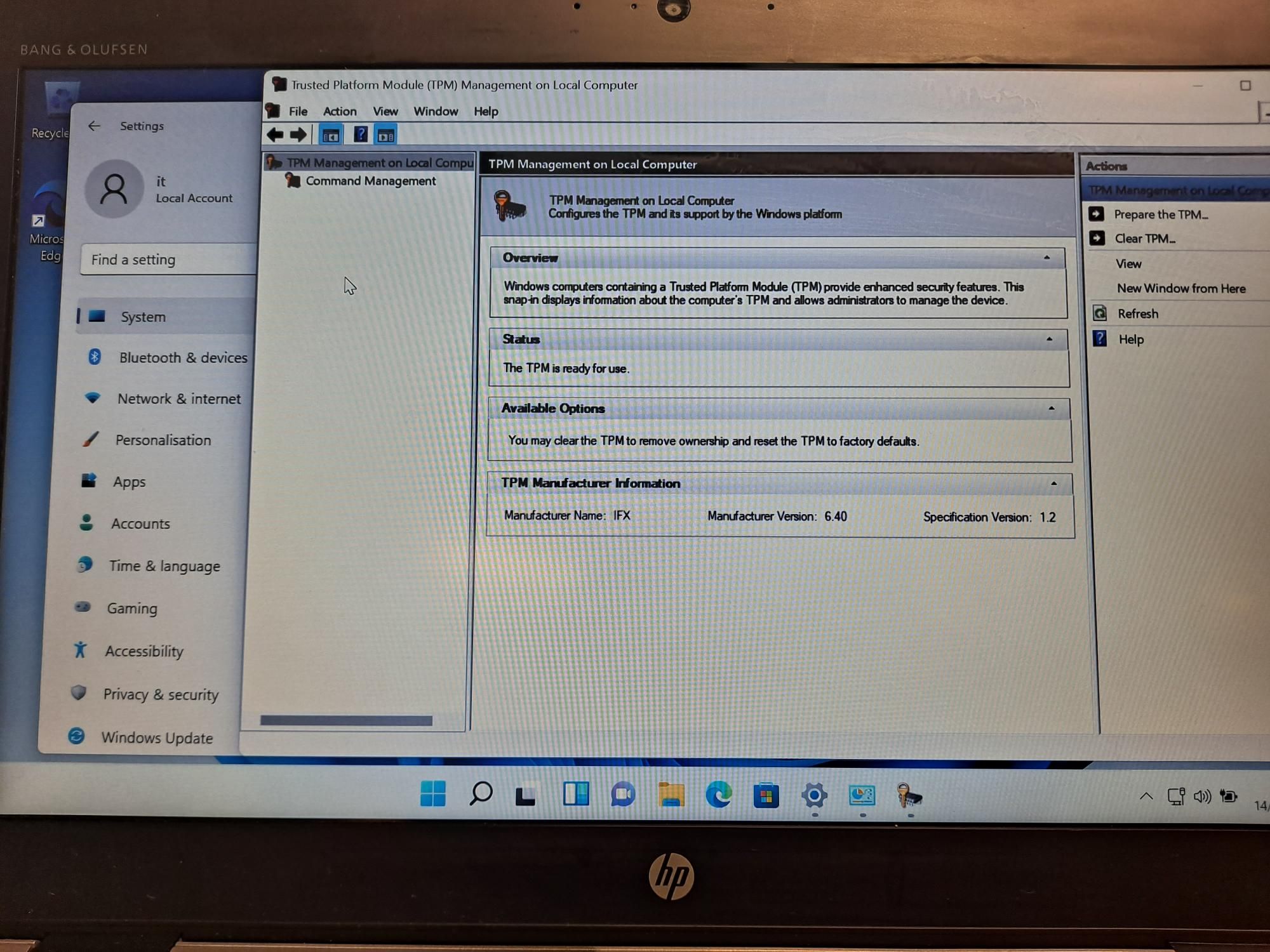

        the pic i shows you shows a laptop with TPM enabled, using the deployed image

        1 Reply Last reply Reply Quote 1
        • george1421
          george1421 Moderator @robertkwild last edited by

          @robertkwild Since you are at the beginning of Windows 11 with special tweaks, I wonder if using MDT to build your golden image would work as needed. You can then automate the inclusion of the registry hack and app removal as the golden image is being built. In the end it would give you a repeatable golden image build process. Then clone and deploy with FOG for mass deployment. You could build your golden image on a VM to abstract the hardware from the building process. It also helps as a VM because you can take snapshots before you do potentially destructive things (like sysprep, where it would take time to put you back to a pre sysprep point). I’m not saying you must go this path, its only an option since you are just beginning with Windows 11. You can technically pxe boot into MDT via FOG if you need to.

          Besides that, well done getting win11 to install without all of the hardware demands of win11.

          Please help us build the FOG community with everyone involved. It's not just about coding - way more we need people to test things, update documentation and most importantly work on uniting the community of people enjoying and working on FOG!

          R 1 Reply Last reply Reply Quote 0
          • R
            robertkwild @robertkwild last edited by

            @robertkwild good news, its worked!

            before i did “quick inventroy” it listed the vm in “hosts” and then i clicked on “capture” to the image i just created, i used the “windows 10” as the os drop down

            i syspreped windows 11, it failed first time, due to some program stopping it, all i had to do was remove it in powershell

            Get-AppxPackage Microsoft.BingNews* | Remove-AppxPackage

            then try again

            sysprep /oobe /generalize /shutdown

            it captured it fine, then i deleted that vm, created a new vm, disabled “secure boot”, network booted to my fog clicked on “deploy image” chose the windows 11 image

            and the end result i get a nice windows 11 vm desktop 😄

            george1421 1 Reply Last reply Reply Quote 1
            • R
              robertkwild @robertkwild last edited by

              @robertkwild this is interesting, that key is no longer there, i rebooted to see if it would still boot in windows and it has


              R 1 Reply Last reply Reply Quote 0
