FOG Project Image Capture on Raspberry Pi 4 (ARM64) via U-Boot

[Jeremy]

@Tom-Elliott

I checked both database entries for hostKernelArgs, and isdebug=yes was indeed not present there.

Regarding the U-Boot wget error, I followed your suggestion and went to the U-Boot prompt (=>) on the Raspberry Pi. When I type wget, it responds with:
Unknown command wget try help

So it seems the U-Boot build on these Raspberry Pis does not have the wget command compiled into it at all. What would be the recommended fallback or alternative method to fetch the script from FOG in this case (e.g., using TFTP or an alternative command if available)?"

[Tom Elliott]

@Jeremy Good, that narrows it down — no wget at all in this build, not just the older syntax. Two ways to close that:

Rebuild U-Boot with wget compiled in (keeps you on the dynamic per-host endpoint). CONFIG_CMD_WGET is a plain menuconfig option — you don’t need the HTTPS variant, which pulls in the whole lwIP/mbedTLS stack, just plain HTTP:

make rpi_4_defconfig
make menuconfig # Command line interface -> Network commands -> wget
make

Reflash the resulting u-boot.bin. Since dhcp already works for you, the network stack is there — this just turns on the one command. Once it’s in, the sequence from before should work as documented.

Or skip the dynamic endpoint and hand-roll a static boot.cmd — which is exactly what already worked for your capture: plain tftp for kernel/initrd/dtb, fixed bootargs with the task’s mac=, osid=, type=, img=, etc. baked in. The real tradeoff: tftp doesn’t ask FOG anything, so that config is identical for every board that boots it. Fine if every Pi runs the same task; not fine if you need FOG to decide per-host. boot.php exists specifically to answer “what does this MAC need right now” dynamically, and there’s currently no TFTP equivalent of it for boards that can’t do HTTP — that’s a real gap on FOG’s side, not something you’re doing wrong.

For 100+ boards I’d lean toward rebuilding U-Boot rather than going static, since you keep per-host tasking either way — but that’s your call based on how uniform the fleet’s deployment actually needs to be.

[Jeremy]

@Tom-Elliott "Hi again,

Following your instructions, I checked the U-Boot prompt. When typing wget, it responds with:
Unknown command wget try help
So the U-Boot build on these boards does not include the wget command.

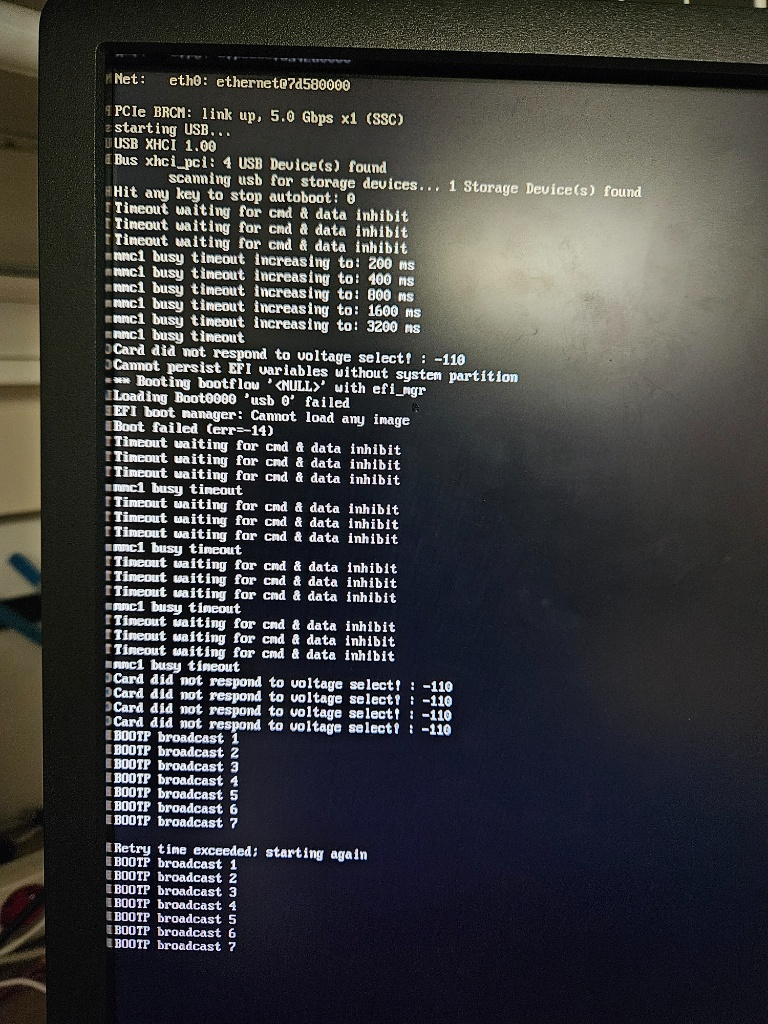

Also, for context on how the board behaves at boot, here is what happens visually during the startup sequence (attached photo): it tries to boot locally, times out on storage (mmc / usb), and then falls back to a standard network BOOTP broadcast loop (Retry time exceeded).

Given that U-Boot lacks wget and relies on standard BOOTP/PXE broadcast rather than direct HTTP fetching, what is the recommended way or fallback mechanism to have these boards pull their configuration from FOG?"
